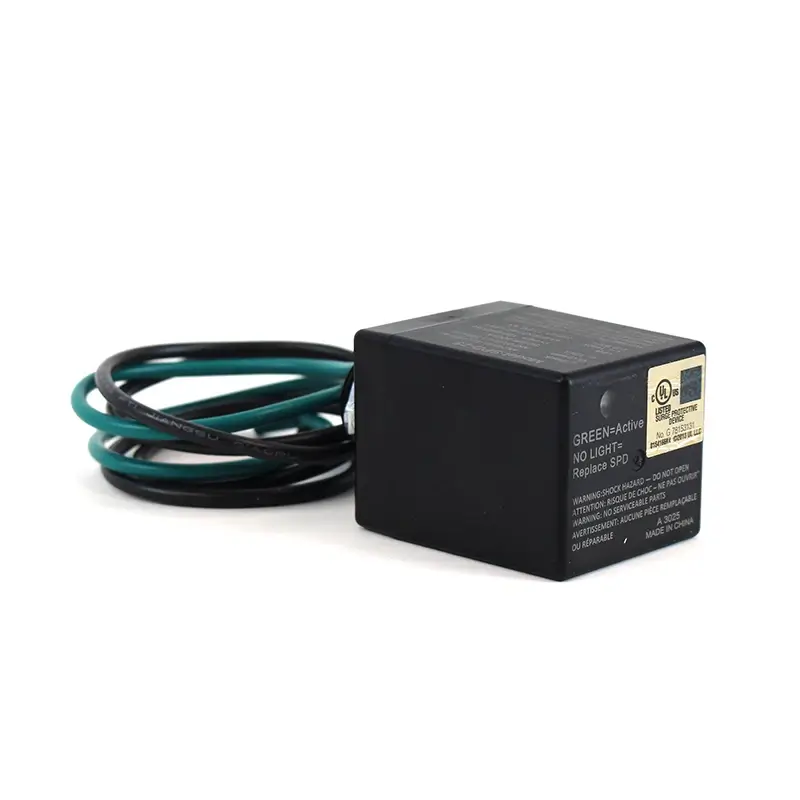

25kA Split-Phase Surge Protective Device (SPD)
| Max Discharge Current | 25kA |
|---|---|
| Nominal Discharge Current | 10kA |
| Short Circuit Current | 200kA |
| Voltage | 120/240V |
| Phase | 1PH |
| Enclosure | NEMA 4 Rated |
| Height (in.) | 1.4 |
| Width (in.) | 1.5 |
| Depth (in.) | 2.5 |
Description
Dial® Compact Surge Protective Device protects the electronics of today’s modern HVAC equipment from power spikes, surges, and transients that can cause damage to sensors, control boards, and ECMs. The thermally protected MOV with gas discharge tube technology provides long term equipment protection and is backed by a limited lifetime warranty.
- 120/240V / Single Phase
- 25kA Max Discharge Current
- 10kA Nominal Discharge Current
- 200kA Short Circuit Current
- NEMA 4 Rated Enclosure
- UL 1499 Listed / cULus Listed
- Gas Discharge Tube technology provides long life.
- Thermally Protected MOV is safe.
- LED Indicator provides visual status of the SPD.
- Compact Size is easy to fit in tight spaces and unobtrusive.
- Limited Lifetime Warranty on the SPD.
- 5 year / $7,500 connected equipment warranty.
Additional information
| Max Discharge Current | 25kA |
|---|---|
| Nominal Discharge Current | 10kA |
| Short Circuit Current | 200kA |
| Voltage | 120/240V |
| Phase | 1PH |
| Enclosure | NEMA 4 Rated |
| Height (in.) | 1.4 |
| Width (in.) | 1.5 |
| Depth (in.) | 2.5 |
| Title | Description | Categories | File Type | Download |
|---|---|---|---|---|
| Surge Protective Device Catalog | Dial HVAC Surge Protective Device Catalog | Catalog Pages | ||
| Surge Protective Device (#73021) Warranty | Dial HVAC Surge Protective Device (Part No. 73021) Warranty | Warranty |
