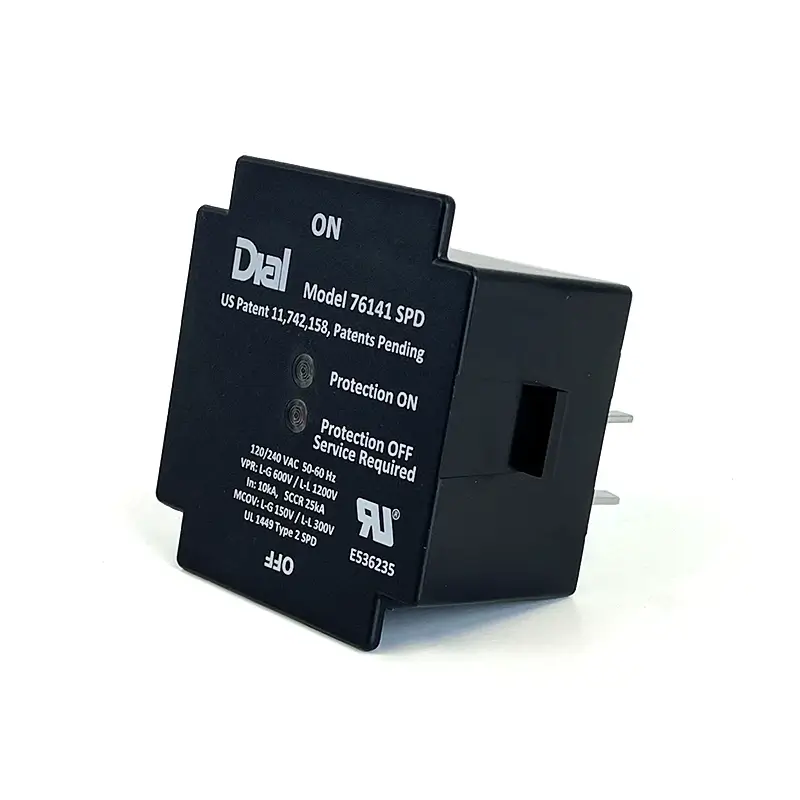

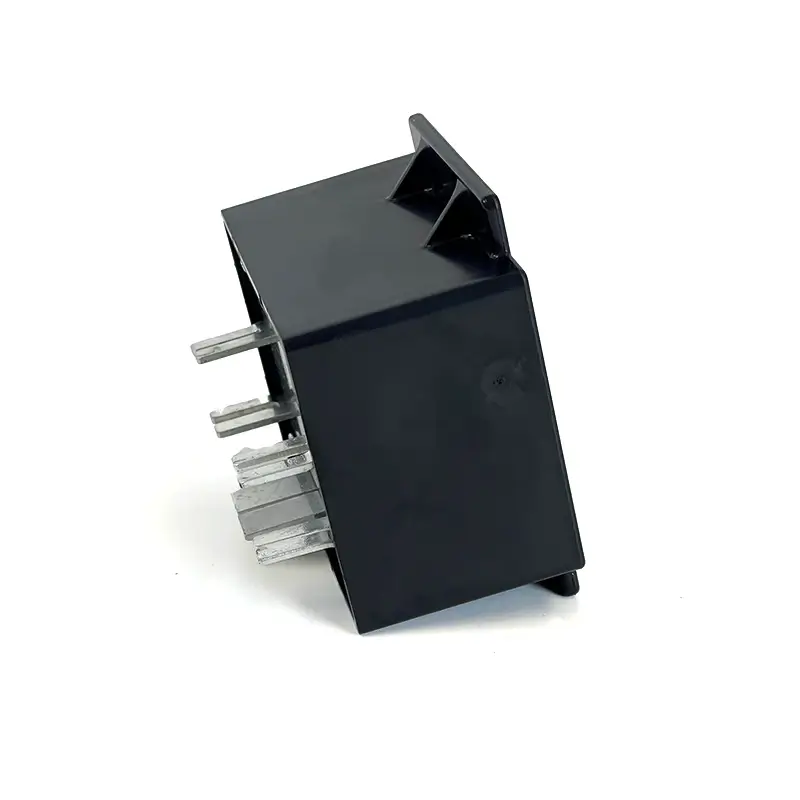

60A Non-Fusible Replacement Surge-Guard Pullout SPD
| Amperage | 60A |
|---|---|
| Voltage | 240V |
| Phase | 1PH |
Description
Dial® 60A Non-Fusible Surge-Guard Disconnect features an easy-to-use pullout with integrated surge protection, making installation as simple as a traditional disconnect. The pullout can be easily disconnected and reinstalled during routine service calls. Housed in a NEMA 3R rain and sleet resistant enclosure, LED indicators are visible through the front window, providing clear, at-a-glance confirmation of surge protection device (SPD) status without opening the enclosure.
- 240V / Single Phase
- NEMA 3R Metallic Enclosure
- 25kA SCCR Rating
- 10kA Nominal Discharge Current
- UL / UL1449 Listed
- Integrated Type-2 SPD contained within the pullout.
- Fully Protected Internal SPD housed safely inside the disconnect.
- Standard Installation — installs like a traditional AC disconnect.
- No Additional Wiring Required for SPD functionality.
- Red/green LED Indicators provide clear, at-a-glance SPD status.
- Anti-UV Powder-Coated Steel side-open enclosure.
Additional information
| Amperage | 60A |
|---|---|
| Voltage | 240V |
| Phase | 1PH |
