60A 120/240V Fusible AC Disconnect, Side-Open
| Amperage | 60A |
|---|---|
| Voltage | 120/240V |
| Phase | 1PH |
| Enclosure | NEMA 3R Metallic |
| Height (in.) | 8.6 |
| Width (in.) | 5.2 |
| Depth (in.) | 2.9 |
| Carton Quantity | 10 |
Description

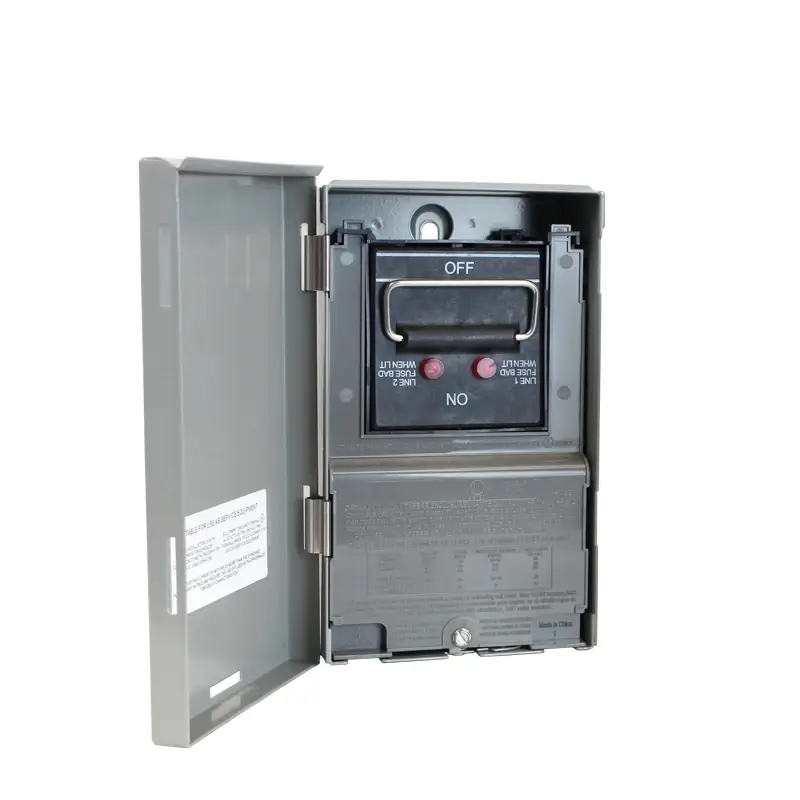

Dial® Side Open Metallic AC Disconnects are designed for fast, reliable installation in applications where space above the box is limited. Reversible door hinges minimize fi tment issues, while the wide-swing door (greater than 180°) provides easy access to internal connections. Fusible models include LED indicators that clearly illuminate when a fuse is missing or blown. The NEMA 3R rain and sleet resistant powder-coated steel enclosure protects against rust and corrosion.
- 120/240V / Single Phase
- 30A and 60A Ratings
- NEMA 3R Metallic Enclosure
- Copper and Aluminum Wire Compatible
- cULus Listed
- Reversible Door Hinges reduce installation fitment problems.
- Wide Swing Door (greater than 180°) provides easy access to connections, simplifying installation and service in tight spaces.
- LED Indicators illuminate when a fuse is missing or blown for at-a-glance fuse status (fusible models only).
- Plated Copper Hardware resists corrosion and ensures optimal conductivity and smooth operation.
- Powder-Coated Galvanized Steel enclosure resists corrosion and rust.
Additional information
| Amperage | 60A |
|---|---|
| Voltage | 120/240V |
| Phase | 1PH |
| Enclosure | NEMA 3R Metallic |
| Height (in.) | 8.6 |
| Width (in.) | 5.2 |
| Depth (in.) | 2.9 |
| Carton Quantity | 10 |
