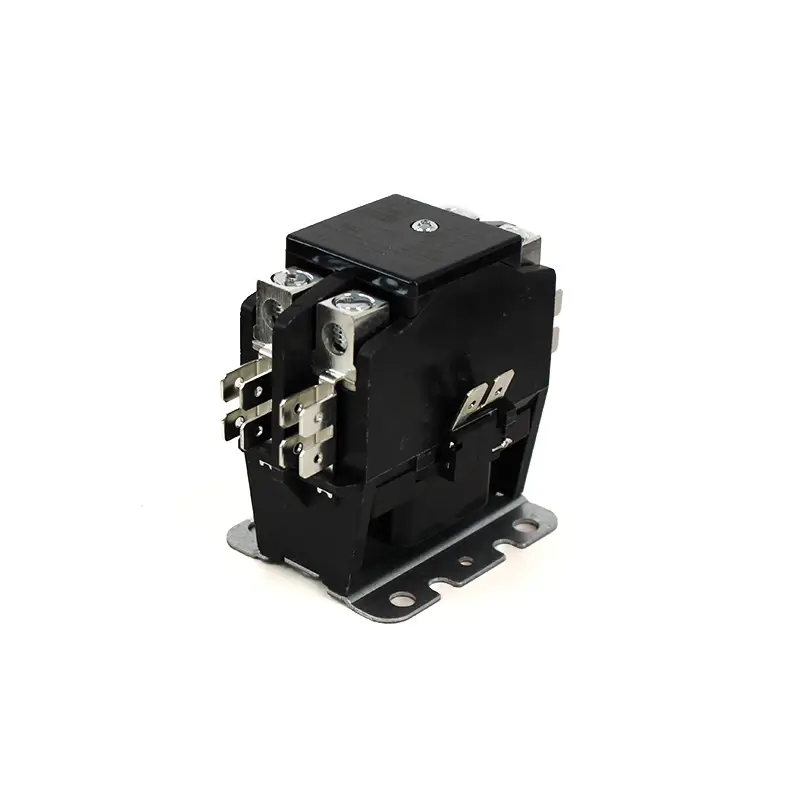

2P 120V 40A DP Contactor
| Poles | 2 |
|---|---|
| Coil Voltage | 120V |
| Termination | Box Lug |
| Body Type | Standard |
| FLA (Inductive) | 40A |
| LRA (Locked Rotor Amps) | @240V: 240A, @277V: 240A, @480V: 200A, @600V: 160A |
| RES (Resistive) | 50A |
| HP Rating | 1PH@240V: 3, 3PH@277V: 7.5, 3PH@480V: 20, 3PH@640V: 25 |
Description
Dial® Commercial Series DP contactors are engineered for optimum performance and durability making them the ideal choice for demanding commercial refrigeration, commercial HVAC, and other high-duty applications, requiring up to 250,000 electrical cycles and 1,000,000 mechanical cycles. OEM-grade silver cadmium oxide contacts, thermoset molded bodies, and fully shrouded magnets provide long-lasting, reliable performance, while 100% copper coils and high-conductivity hardware maintain cooler operation and consistent pull-in performance.
- ARI 780 / 790
- A2L Compliant
- -40°C to 60°C Ambient
- Universal Fitment
- UL Recognized / CSA Certified
- OEM-Grade Silver Cadmium Oxide Contacts are the most durable contacts available, for long-lasting, reliable performance.
- Thermoset Molded Bodies are stronger than thermoplastic and resist warpage caused by heat generated in maximum current applications.
- Fully Shrouded Magnets help prevent damage from contaminants and insect penetration.
- 100% Copper Coils reduce operating temperatures and ensure consistent pull-in performance.
- High-Conductivity brass and copper hardware maintains cooler operating temperatures.
Additional information
| Poles | 2 |
|---|---|
| Coil Voltage | 120V |
| Termination | Box Lug |
| Body Type | Standard |
| FLA (Inductive) | 40A |
| LRA (Locked Rotor Amps) | @240V: 240A, @277V: 240A, @480V: 200A, @600V: 160A |
| RES (Resistive) | 50A |
| HP Rating | 1PH@240V: 3, 3PH@277V: 7.5, 3PH@480V: 20, 3PH@640V: 25 |
| Title | Description | Categories | File Type | Download |
|---|---|---|---|---|
| Commercial Series DP Contactors Catalog | Dial HVAC Commercial Series DP Contactors Catalog | Catalog Pages |
