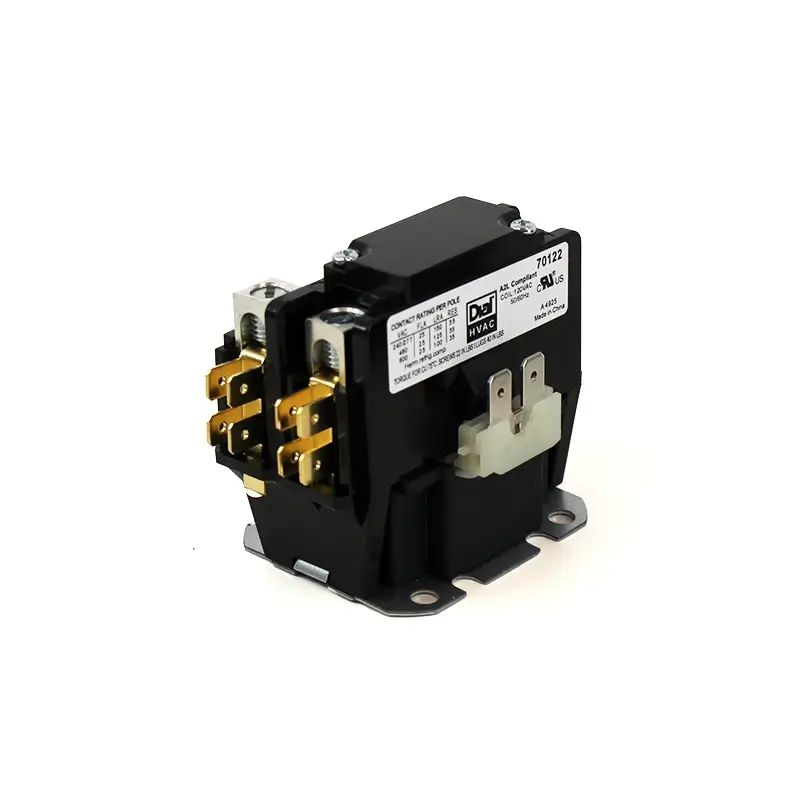

1.5P 24V 25A DP Contactor
| Poles | 1.5 |
|---|---|
| Coil Voltage | 24V |
| Termination | Box Lug |
| Body Type | Standard |
| FLA (Inductive) | 25A |
| LRA (Locked Rotor Amps) | @240V: 150A, @277V: 150A, @480V: 125A, @600V: 100A |
| RES (Resistive) | 35A |
| HP Rating | 1PH@240V: 2, 3PH@277V: 5, 3PH@480V: 7.5, 3PH@640V: 15 |
Description
Dial® Professional Series DP contactors offer HVAC service technicians a balance of performance and value. Dial® Professional Series DP contactors feature 100% copper coils that keep operation cooler and ensure consistent, dependable pull-in, silver cadmium oxide contacts that deliver long-lasting durability, and high-conductivity brass and copper hardware that maintains cooler temperatures and supports efficient, reliable performance.
- A2L Compliant
- -40°C to 60°C Ambient
- Universal Fitment
- UL Recognized / CSA Certified
- OEM-Grade Silver Cadmium Oxide Contacts are the most durable contacts available, for long-lasting, reliable performance.
- 100% Copper Coils reduce operating temperatures and ensure consistent pull-in performance.
- High-Conductivity brass and copper hardware maintains cooler operating temperatures.
Additional information
| Poles | 1.5 |
|---|---|
| Coil Voltage | 24V |
| Termination | Box Lug |
| Body Type | Standard |
| FLA (Inductive) | 25A |
| LRA (Locked Rotor Amps) | @240V: 150A, @277V: 150A, @480V: 125A, @600V: 100A |
| RES (Resistive) | 35A |
| HP Rating | 1PH@240V: 2, 3PH@277V: 5, 3PH@480V: 7.5, 3PH@640V: 15 |
| Title | Description | Categories | File Type | Download |
|---|---|---|---|---|
| Professional Series DP Contactors Catalog | Dial HVAC Professional Series DP Contactors Catalog | Catalog Pages |
