Professional Series

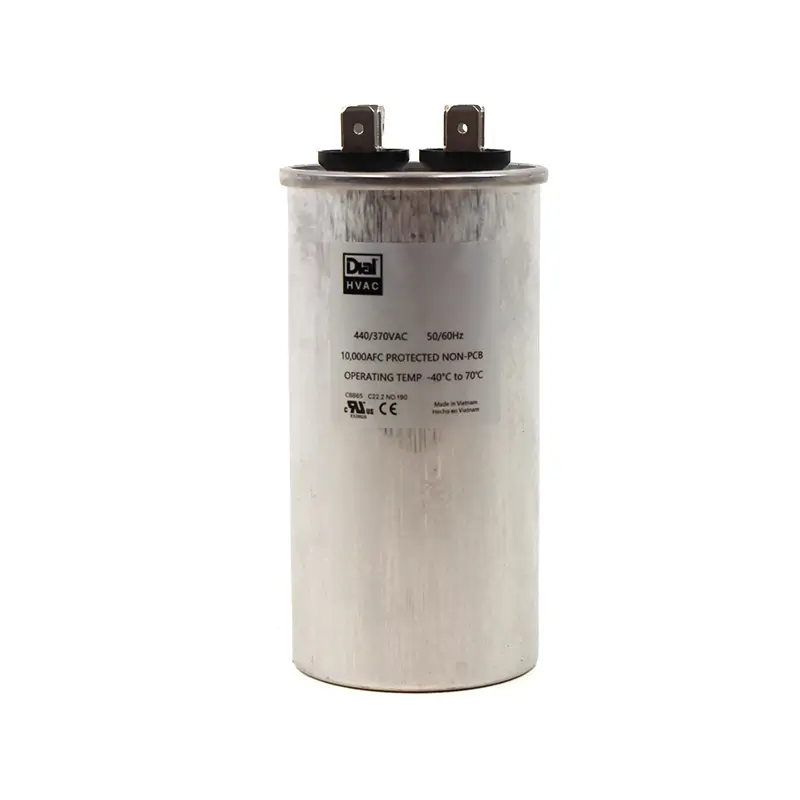

4μF 370V Single Run Capacitor, Round
| Function | Single Run |
|---|---|
| Capacitance | 4μF |
| Voltage | 370V |
| Form Factor | Round |
| Height (in.) | 2.17 |
| Diameter (in.) | 1.57 |
Description
Dial® Run Capacitors are manufactured to deliver reliable, consistent performance for split phase HVAC/R motor and compressor applications. Designed to meet EIA-456A performance requirements, they offer an economical solution without compromising quality or durability. Dial provides a complete range of single and dual ratings in round and oval aluminum cans, engineered for dependable operation and backed by an unmatched 10-year warranty.
- EIA-456A, 60,000 h (Operating Life)
- OEM Approved
- -40°C to 70°C Operating Temperature
- 370 / 440V
- UL Recognized / CSA Certified
- Pressure Sensitive Interrupter safely disconnects the capacitor in the event of a failure.
- Non-PCB Oil fill for safe and environmentally compliant operation.
- Heavy-Duty Film for long-life motor-run applications.
- 10-Year Warranty
Additional information
| Function | Single Run |
|---|---|
| Capacitance | 4μF |
| Voltage | 370V |
| Form Factor | Round |
| Height (in.) | 2.17 |
| Diameter (in.) | 1.57 |
| Title | Description | Categories | File Type | Download |
|---|---|---|---|---|
| Run Capacitors Catalog | Dial HVAC Motor Run Capacitors Catalog | Catalog Pages |
